Microwave Barrier Switch

MWBS

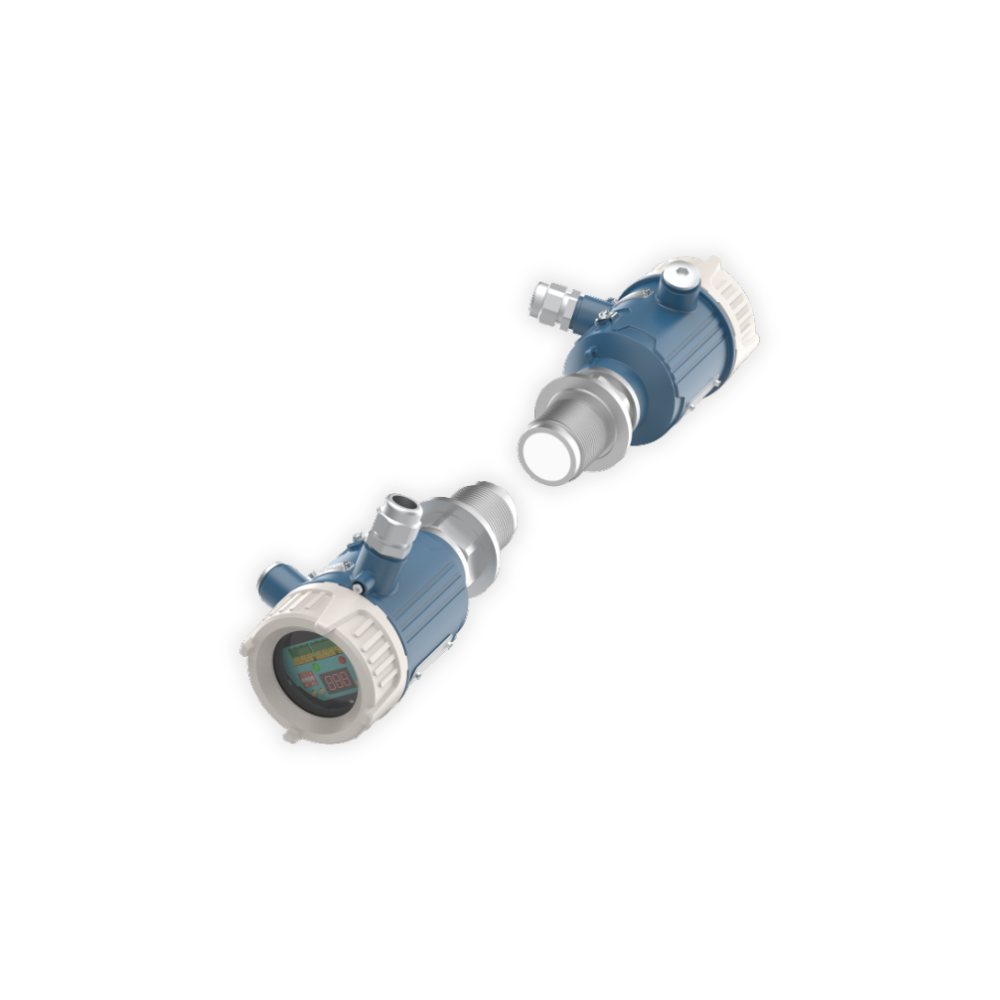

The MWBS Microwave Barrier Switch is a high-performance non-contact detection system designed for monitoring the presence of bulk materials in industrial processes. The system consists of a transmitter and receiver installed opposite each other, where the transmitter emits microwave signals toward the receiver. When material obstructs the microwave signal path, the receiver detects the signal interruption and activates a relay output. This technology enables reliable detection of bulk solids, powders, and granules even in harsh industrial environments.

  • Reliable detection of bulk solids, powders, and granules
  • Stable performance in dusty, high-temperature industrial environments
  • Non-contact measurement reduces wear and maintenance
  • Early fault diagnostics help prevent unexpected downtime
  • Suitable for long detection distances up to 100 meters
Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

  • Microwave barrier detection using transmitter and receiver system
  • Digital frequency modulation with multi-band anti-interference design
  • PLL-based oscillator ensuring stable microwave signal
  • Digital display with parameter configuration
  • Bluetooth remote debugging and monitoring
  • Comprehensive fault diagnosis and safety warning functions
  • Electronic component temperature monitoring
  • Hardware self-check functionality
  • Relay output for integration with PLC or control systems
  • Industrial IP67 protection for harsh environments
  • Monitoring presence of bulk solids in silos and bins
  • Feed and discharge monitoring in process systems
  • High and low-level alarms in storage bins
  • Conveyor belt material detection
  • Truck or vehicle position detection during loading
  • Equipment collision detection in industrial systems
  • Monitoring material transport on conveyors
  • Measurement Principle: Microwave Barrier Detection
  • Application Media: Powder, Granules, Bulk Solids, Floccules
  • Measuring Range: 0 – 100 m
  • Frequency: 24 – 26 GHz
  • Beam Angle: 20°
  • Power Supply: 24 VDC / 110 VAC / 220 VAC
  • Signal Output: DPDT Relay Output
  • Contact Capacity: 250 VAC, 2 A
  • Power Consumption: < 3 W
  • Adjustable Delay Time: 0 – 999 s
  • Ambient Temperature: −40°C to 80°C
  • Process Temperature: −40°C to 80°C (Up to 500°C with adapter)
  • Process Pressure: −1 to 4 bar
  • Antenna Material: 316L Stainless Steel / PTFE
  • Protection Rating: IP67
  • Electrical Interface: M20×1.5 / ½ NPT

    Watch Our Product in Action

    Comprehensive Services Using This Product

    From installation to ongoing support, we’re with you every step of the way.

    What Customers Say About Us

    Trusted Engineering Support

    The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

    Mr. Vivek Nair
    Mr. Vivek NairGeneral Manager – Operations, Cement Industry
    Dependable Technical Partner

    Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

    Ms. Kavita Rao
    Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector
    Application-Focused Solutions

    They understood our process conditions before recommending equipment. Support during installation was handled professionally.

    Mr. Rohan Mehta
    Mr. Rohan MehtaProject Lead – Power Plant
    Consistent Service Delivery

    Product performance has been stable in regular operations. The support team responds in a timely manner.

    Mr. Anil Deshmukh
    Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

    Insights & News

    The Role of Calibration in Quality Assurance
    Understand why regular calibration of instruments is vital for maintaining accuracy, safety, and consistency in industrial processes—and how TIPL’s NABL-accredited labs ensure precise performance across sectors.
    Ensuring Environmental Compliance with CEMS: A Step Ahead
    Learn how Continuous Emission Monitoring Systems (CEMS) help industries stay compliant with environmental norms, providing real-time emission data, remote monitoring, and actionable insights for sustainable and responsible manufacturing.
    How Predictive Maintenance is Transforming Industrial Efficiency
    Discover how advanced monitoring tools like vibration and ultrasound solutions are helping industries move from reactive to predictive maintenance—reducing downtime, extending equipment life, and optimizing productivity across critical operations.

    Clients Who Have Transformed Their Operations with This Product

    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo

    Frequently Asked Questions About This Product

    The system uses two devices: a transmitter and a receiver installed face-to-face. When the microwave signal path is blocked by material, the receiver detects the signal loss and activates the relay output.
    It can detect powders, granules, bulk solids, and other solid materials in industrial applications.
    The MWBS can detect material presence up to 100 meters depending on installation conditions.
    Yes. Microwave technology is highly resistant to dust, buildup, and harsh industrial conditions, making it suitable for silos and conveyors.
    Yes. The device provides DPDT relay output, allowing easy integration with PLC, DCS, and automation systems.
