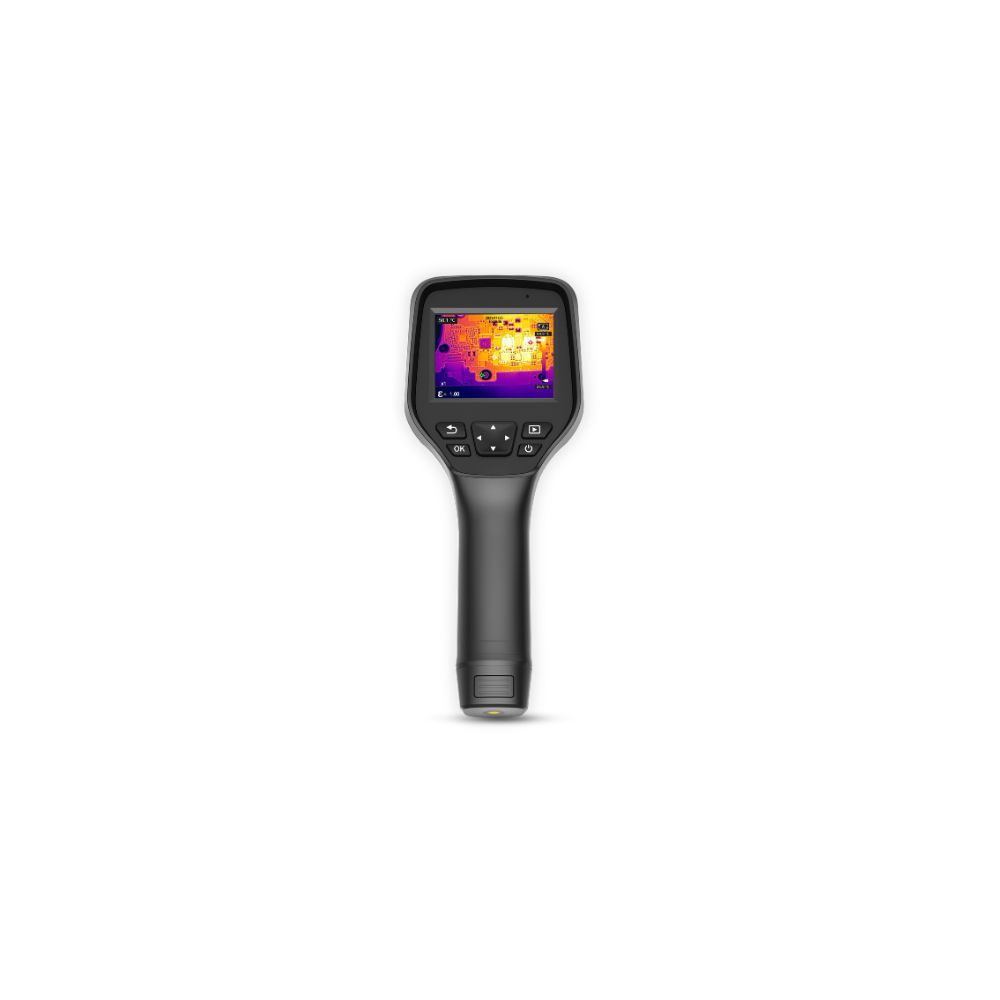

Thermal Imaging Camera

TI340R

This Series is an advanced compact series Thermal Imaging Camera, which features a maximum IR resolution of 256×192 pixels, 3.5 inch LCD touchscreen display, IR/P-in-P/Visual/ Thermal Fusion modes, CCD camera, Voice & Text annotation, etc. These models are suitable for a wide range of applications, such as Industrial inspection and testing, power plants, Railways, Metro, Petrochemical, Metallurgy, Renewable energy, HVAC applications, etc.

Supplied with traceable calibration certificate.
Application-based selection guidance from technical team.
Demonstration support for initial familiarization.
Repair and maintenance support from authorized service center.

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

256×192 pixels detector resolution.
Manual focus
3.5-inch touchscreen display, 640 x 480 resolution.
Infrared, Visible, P-in-P, Thermal Fusion.
Up to 40mK thermal sensitivity.
Laser pointer
Digital Zoom
Built-in CCD camera
Features: Android powered, Video recording, Voice & Text annotation, QR Code, WiFi, US

Electrical panel and MCC hotspot inspection.
Motor, bearing and rotating equipment monitoring.
Power plant switchgear inspection.
Railway and metro electrical system monitoring.
Petrochemical pipeline and pump inspection.

Model: TI340R
Detector: 12 μm Uncooled IR Detector, IR Detector Resolution 256 × 192 pixels
Thermal Sensitivity (NETD): ≤40 mK (≤0.04℃ @25℃)
Lens / Optics: Field of View 24.8° × 18.7°, IFOV 1.71 mrad, Minimum Focus Distance 0.2 m
Imaging Performance: Frame Rate 25 Hz, Manual Focus, Spectral Range 7.5 – 14 µm, Digital Zoom 1x / 2x / 4x
Visual Camera: Built-in 2 MP CCD camera
Display: 3.5-inch LCD touch screen, 640 × 480 resolution
Image Modes: Thermal Image, Visible Image, Picture-in-Picture, Thermal Fusion
Temperature Range: -20°C to +550°C (-20°C to +150°C, 100°C to +550°C)
Accuracy: ±2°C or ±2% of reading, whichever is greater
Measurement Functions: 10 spots, 10 areas, 10 lines, Maximum & Minimum point tracking, Info display (Max., Min., Avg.)
Color Palette: 10 palettes
Setup Functions: Date / time, temperature units (°C / °F), language
Emissivity Correction: Adjustable 0.01 – 1.0
Laser: Laser Pointer
Storage: Micro SD card slot with 32 GB Micro SD card (optional up to 128 GB)
Capture & File Format: Single frame capture and video recording, Image format JPEG with measurement data, Video format IRV / MP4
Gallery & Analysis: Gallery available (View, Analyse, Edit, Delete), On-device analysis available, PC Infrared Analysis Software & Mobile APP (iOS / Android)
Annotation & Identification: Voice annotation, Text annotation, QR code support
Battery & Power: Rechargeable Li-ion battery 3.6V 5000 mAh, operating time >4 hours, charging time ~2.5 hours, charging via USB Type-C or desktop charger, auto sleep & auto shutdown
Environment: Operating temperature -10°C ~ 50°C, storage temperature -20°C ~ 60°C (without battery), relative humidity <95% RH non-condensing
Physical: Weight ~660 g (including battery), dimensions ~258.4 × 105.1 × 102.3 mm, tripod mounting UNC 1/4-20
Interfaces: WiFi (2.4 GHz & 5 GHz, 802.11 a/b/g/n/ac), Micro SD card slot, Video output available, USB Type-C (USB 3.0 / 2.0 compliant, OTG), Remote display & control through APP
Safety & Protection: Shock 25 g (IEC 60068-2), Vibration 2 g (IEC 60068-2), Drop resistance 2 m (IEC 60068-2-32), Safety IEC 61010-1, CE certification, IP54 protection, EMC IEC 61000-4
Standard Accessories: Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, quick start guide, battery charger, NABL calibration certificate, package list, safety box
Optional Accessories: 128 GB Micro SD card, spare rechargeable battery, spare battery charger
