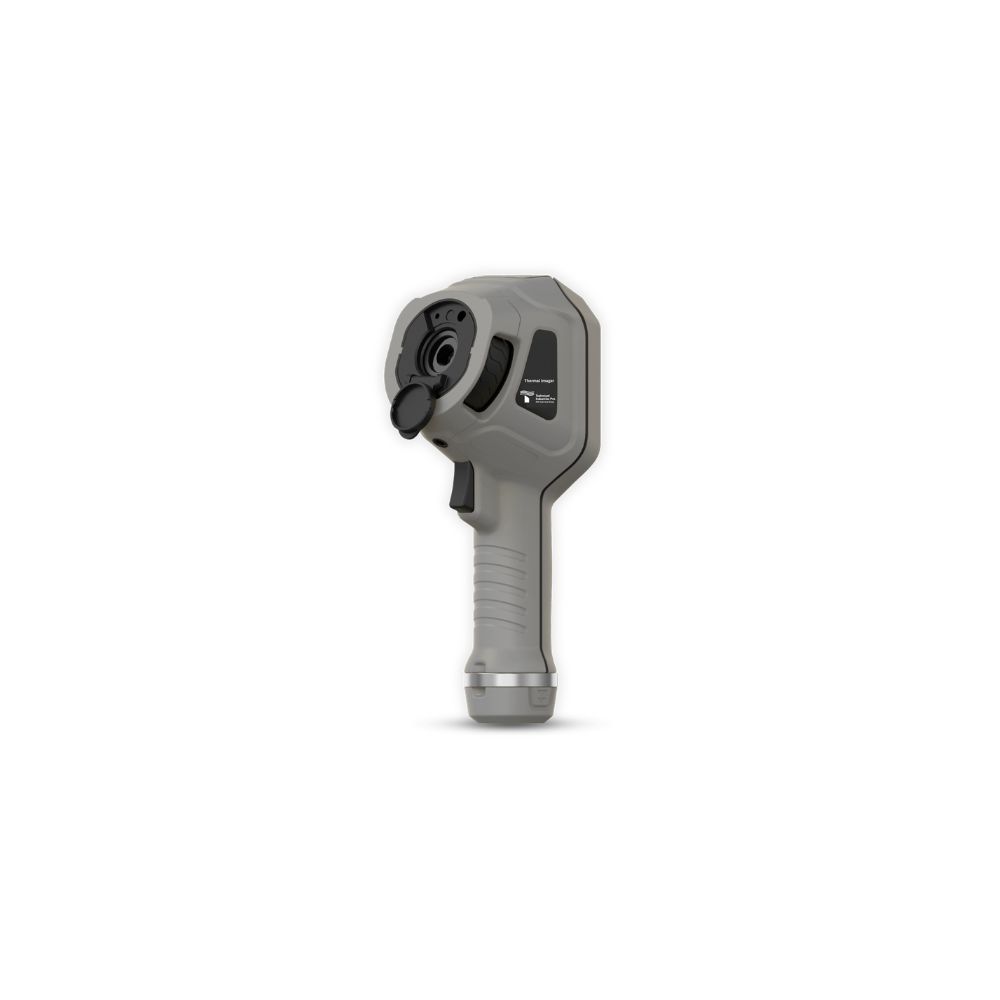

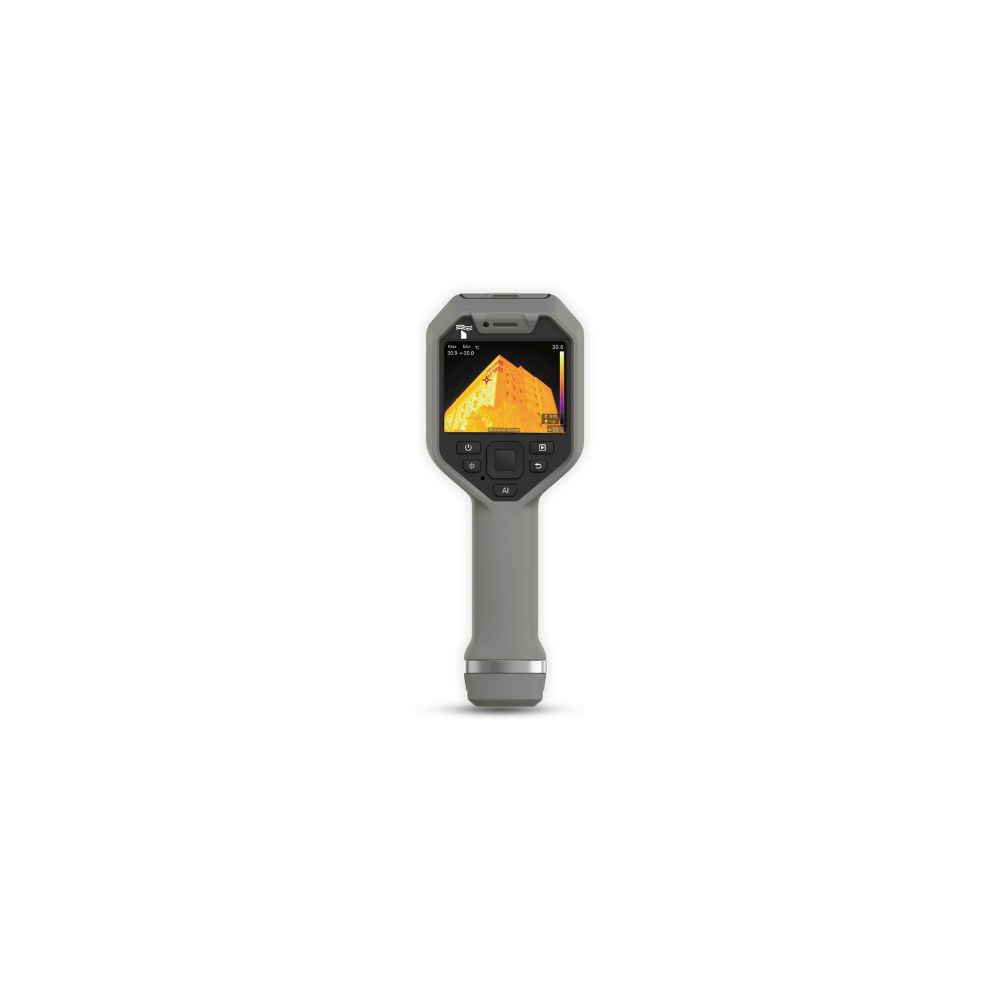

Thermal Imaging Camera

TK8

The TK8 Thermal Imaging Camera is a professional handheld thermal inspection system designed for accurate temperature diagnostics in industrial environments. It uses the same 384 × 288 detector with super resolution up to 768 × 576, but includes manual focus optics for better measurement accuracy at shorter distances.

The camera features a 3.5-inch touchscreen display, 8 MP CCD camera, and advanced analysis tools including ROI measurement, alarms, and multiple temperature measurement modes.

  • Low Maintenance – Designed for long-term operation with minimal servicing.
  • High Accuracy & Reliable Performance – Precise measurement for critical industrial applications.
  • Industrial-Grade Durability – Built to perform in harsh environments like dust, heat, and vibration.
  • Reliable Technical Support – Backed by expert service and application support.
Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

  • 384 × 288 detector resolution
  • 768 × 576 super resolution
  • Manual focus
  • 3.5 inch LCD touchscreen
  • Thermal / Visible / P-in-P / Fusion imaging
  • ≤40 mK sensitivity
  • Laser pointer
  • Continuous zoom 1 – 8×
  • 8 MP CCD digital camera
  • Android powered
  • AI functions
  • Video recording
  • Voice annotation
  • Text annotation
  • WiFi
  • USB
  • HDMI
  • Industrial inspection & testing
  • Power plants
  • Railways and metro systems
  • Petrochemical industries
  • Metallurgy
  • Renewable energy
  • HVAC systems
  • Detector Type: Uncooled FPA IR Detector
  • IR Resolution: 384 × 288, Super Resolution 768 × 576, Detector Pitch 17 µm
  • Thermal Sensitivity (NETD): ≤ 40 mK
  • Imaging Performance: Frame Rate 30 Hz, Spectral Range 7 – 14 µm, Digital Zoom 1–8× continuous
  • Visual Camera: Built-in 8 MP CCD camera with LED flash
  • Lens / Optics: Field of View 25° × 19°, IFOV 1.14 mrad, Focal Length 15 mm, Minimum Focus Distance 0.15 m, Manual Focus
  • Display: 3.5-inch LCD touchscreen
  • Image Modes: Thermal, Visible, Picture-in-Picture, Thermal Fusion
  • Temperature Range: -20°C to +550°C
  • Accuracy: ±2°C or ±2%
  • Measurement Modes: Spot, Area, Line
  • Storage: 32 GB storage card (optional up to 128 GB)
  • File Formats: Image JPEG, Video MP4
  • Battery & Power: 3.6 V 5000 mAh Li-ion battery, operating time >4 hours
  • Environment: Operating temperature -20°C to 50°C, storage temperature -40°C to 70°C
  • Physical: Weight ~800 g
  • Protection: IP54

    Watch Our Product in Action

    Comprehensive Services Using This Product

    From installation to ongoing support, we’re with you every step of the way.

    What Customers Say About Us

    Trusted Engineering Support

    The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

    Mr. Vivek Nair
    Mr. Vivek NairGeneral Manager – Operations, Cement Industry
    Dependable Technical Partner

    Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

    Ms. Kavita Rao
    Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector
    Application-Focused Solutions

    They understood our process conditions before recommending equipment. Support during installation was handled professionally.

    Mr. Rohan Mehta
    Mr. Rohan MehtaProject Lead – Power Plant
    Consistent Service Delivery

    Product performance has been stable in regular operations. The support team responds in a timely manner.

    Mr. Anil Deshmukh
    Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

    Insights & News

    The Role of Calibration in Quality Assurance
    Understand why regular calibration of instruments is vital for maintaining accuracy, safety, and consistency in industrial processes—and how TIPL’s NABL-accredited labs ensure precise performance across sectors.
    Ensuring Environmental Compliance with CEMS: A Step Ahead
    Learn how Continuous Emission Monitoring Systems (CEMS) help industries stay compliant with environmental norms, providing real-time emission data, remote monitoring, and actionable insights for sustainable and responsible manufacturing.
    How Predictive Maintenance is Transforming Industrial Efficiency
    Discover how advanced monitoring tools like vibration and ultrasound solutions are helping industries move from reactive to predictive maintenance—reducing downtime, extending equipment life, and optimizing productivity across critical operations.

    Clients Who Have Transformed Their Operations with This Product

    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo

    Frequently Asked Questions About This Product

    The TK Series is an advanced thermal imaging camera that detects temperature differences using infrared technology and converts them into thermal images for inspection and analysis.
    The TK Series includes two models: TK7 – Focus-free camera TK8 – Manual focus camera
    The camera has an IR detector resolution of 384 × 288 pixels, with a super resolution mode of 768 × 576 pixels for enhanced image clarity.
    The TK Series can measure temperatures from -20°C to +550°C, making it suitable for various industrial applications.
    The measurement accuracy is ±2°C or ±2% of the reading (whichever is greater).
    The camera uses a 5000 mAh rechargeable lithium-ion battery, providing more than 4 hours of operating time.
