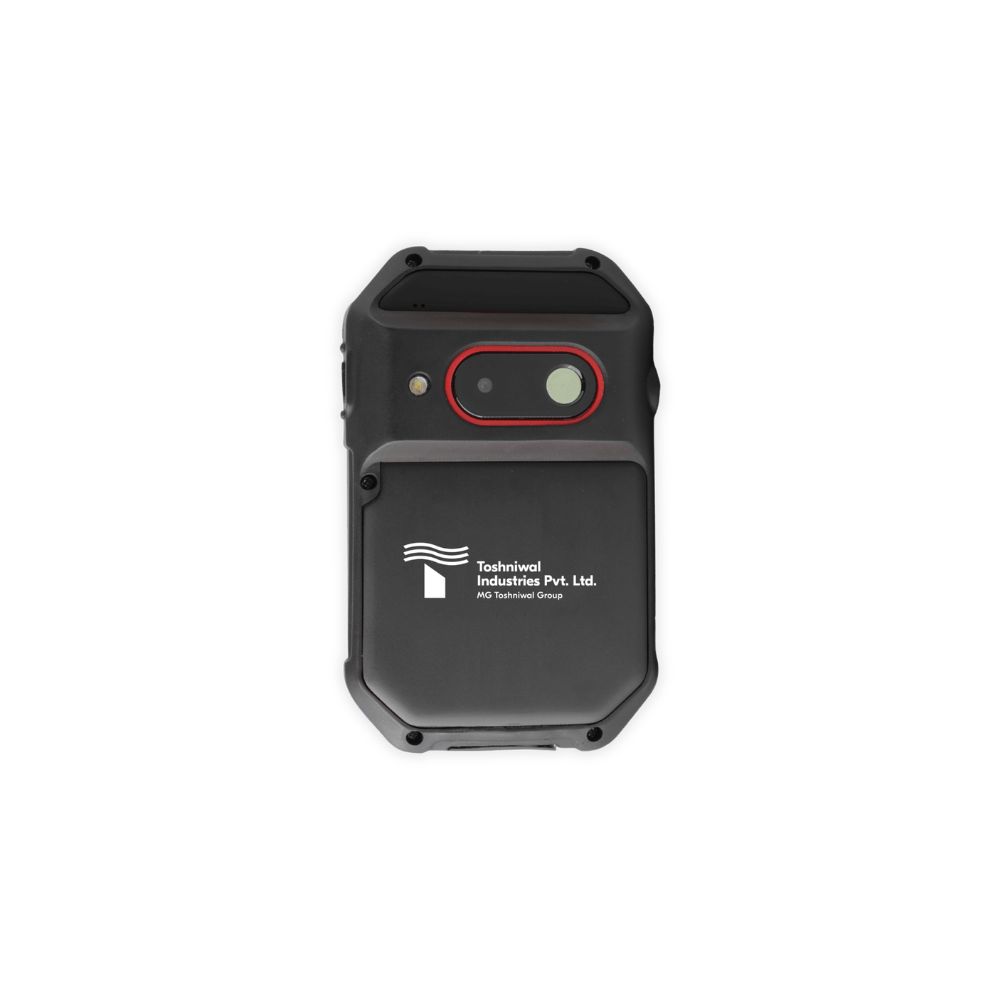

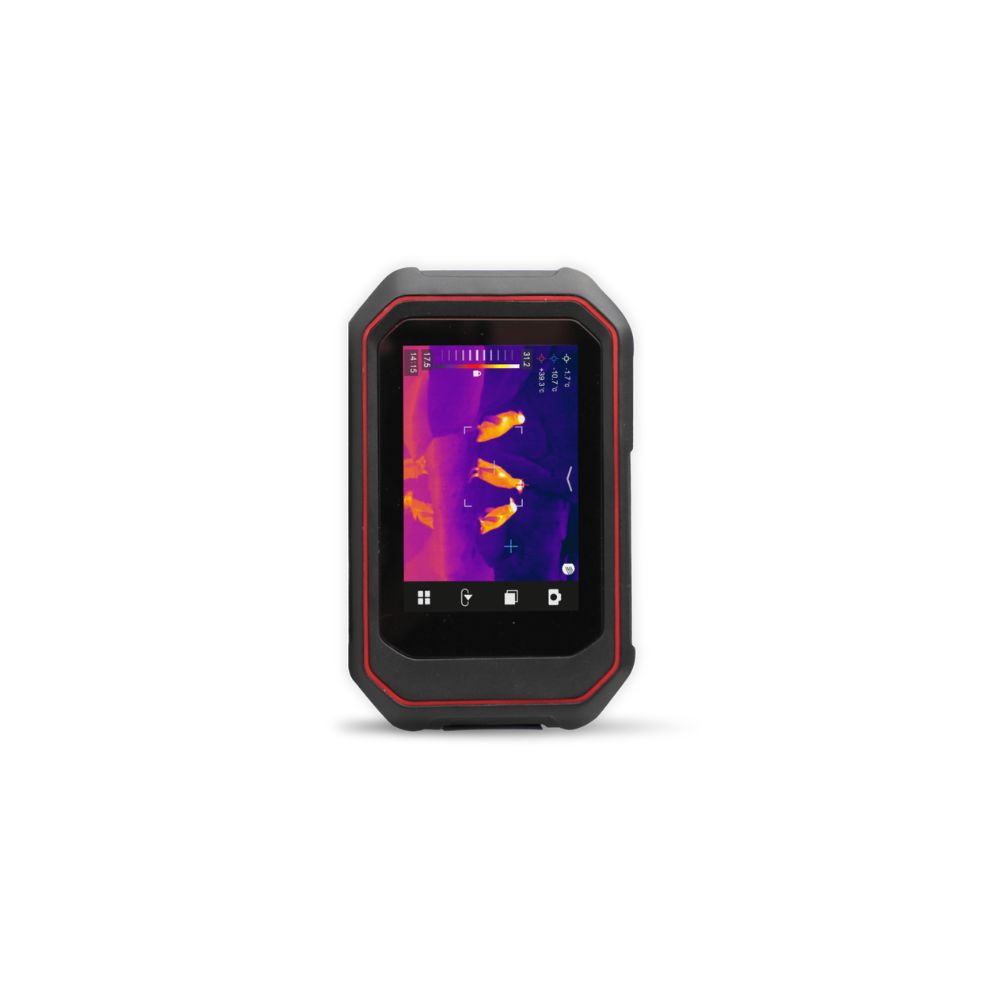

Pocket Series Thermal Imaging Camera

TI-C25

TI-C25 series are the latest advanced technology compact thermal imaging cameras. Widely suited for use in Research, Building Maintenance, Medical, Transport, Archaeological, Agricultural fields and many more.



  • PAN-India support network availability.
  • Pre-dispatch inspection and quality check before delivery.
  • Software and application guidance provided.
  • Prompt response for technical queries.
Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

  • Compact Pocket series
  • Wide temperature range (-)20 to 650°C
  • 6 Color palettes
  • 3.5 inch TFT color touchscreen
  • 16GB storage
  • IP67, 2 meters drop resistance
  • Gravity sensors for horizontal and vertical display modes
  • Features WiFi, Real time analysis, Data upload, Max and Min temperatures, Line Temperature, Regional Temperature, Alarm
  • Image modes : Infrared, Visible, Fusion, Picture in Picture
  • Focus Free
  • R&D and Academic Use
  • HVAC & Building Inspections
  • Mechanical Diagnostics
  • Electrical Maintenance
  • Model: TI-C25
  • Imaging Modes: Thermal Image, Visible Image, Picture in Picture, Image Fusion
  • Detector: Uncooled FPA Infrared Detector (Vanadium Oxide), IR Resolution 256 × 192, Total Pixels 49,152
  • Thermal Sensitivity (NETD): <50mk @30°C
  • Lens / Optics: 6.0 mm / F1.0, Field of View ≃ 30° × 22°, Spatial Resolution 2.0 mrad
  • Imaging Performance: Frame Rate 50Hz, Focus Free, Spectral Range 8μm ~ 14μm ±0.5μm
  • Display: 3.5 inch TFT color touch-screen with built-in gravity sensors (auto horizontal / vertical UI rotation) and rotation lock
  • Measurement Functions: Real-time movable points (max, min or standard), movable area (max, min, avg), arbitrary line temperature measurement (resizable, movable & angle orientation), temperature alarm (sound, color), flashlight available
  • Temperature Range: -20 °C ~ 650°C, Accuracy ±2 °C or ±2% whichever is greater (@25 °C ambient)
  • Emissivity Correction: Adjustable from 0.01 to 1.0 with measurement correction based on emissivity, ambient temperature, background temperature, humidity and distance
  • Storage & Format: 16GB built-in storage, image format standard JPEG
  • Interfaces: WiFi available, USB for charging and data transfer
  • Power: Built-in rechargeable Lithium-ion battery, operating time >4 hours, USB charging, automatic sleep and shutdown power saving
  • Environment: Operating temperature -15°C ~ 50°C, storage temperature -40°C ~ 70°C, relative humidity <95% RH non-condensing
  • Physical: Weight ~200 g, dimensions ~135 × 90 × 26 mm
  • Protection & Safety: Vibration 2G (IEC 60068-2-6), Shock 30G (IEC 60068-2-27), Drop resistance 2 meters, IP67 encapsulation
  • Standard Accessories: Manual, NABL Calibration Certificate, USB data cum charging cable, packaging box, power adapter, 16GB USB containing Android based APP, analysis software and manual

    Watch Our Product in Action

    Comprehensive Services Using This Product

    From installation to ongoing support, we’re with you every step of the way.

    What Customers Say About Us

    Excellent Technical Support

    The team demonstrated strong application understanding and timely execution. Overall experience has been very satisfactory.

    Mr. Rajesh Sharma
    Mr. Rajesh SharmaPlant Head, Cement Division
    Reliable Industrial Partner

    Solutions were practical and suited to our requirement. Service response has been consistent.

    Mr. Amit Verma
    Mr. Amit VermaMaintenance Manager, Steel Plant
    Good Project Coordination

    Product quality met expectations and installation support was helpful. Communication during execution was smooth.

    Mr. Prakash Iyer
    Mr. Prakash IyerInstrumentation Head, Process Industry
    Strong Technical Expertise

    The team handled the application professionally. Support during commissioning was commendable.

    Ms. Neha Gupta
    Ms. Neha GuptaInstrumentation Head, Process Industry

    Insights & News

    The Role of Calibration in Quality Assurance
    Understand why regular calibration of instruments is vital for maintaining accuracy, safety, and consistency in industrial processes—and how TIPL’s NABL-accredited labs ensure precise performance across sectors.
    Ensuring Environmental Compliance with CEMS: A Step Ahead
    Learn how Continuous Emission Monitoring Systems (CEMS) help industries stay compliant with environmental norms, providing real-time emission data, remote monitoring, and actionable insights for sustainable and responsible manufacturing.
    How Predictive Maintenance is Transforming Industrial Efficiency
    Discover how advanced monitoring tools like vibration and ultrasound solutions are helping industries move from reactive to predictive maintenance—reducing downtime, extending equipment life, and optimizing productivity across critical operations.

    Clients Who Have Transformed Their Operations with This Product

    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo

    Frequently Asked Questions About This Product

    TI-C25 is a handheld industrial thermal camera designed for accurate non-contact temperature measurement, preventive maintenance, and process monitoring across electrical, mechanical, and industrial applications.
    TI-C25 is equipped with a high-resolution infrared detector (e.g., 640×480 / 384×288 depending on variant) to deliver clear and detailed thermal images for precise hotspot detection.
    he camera offers ≤40mK thermal sensitivity, meaning it can detect very small temperature differences — ideal for critical inspection where early fault detection is required.
