Thermal Imager Camera

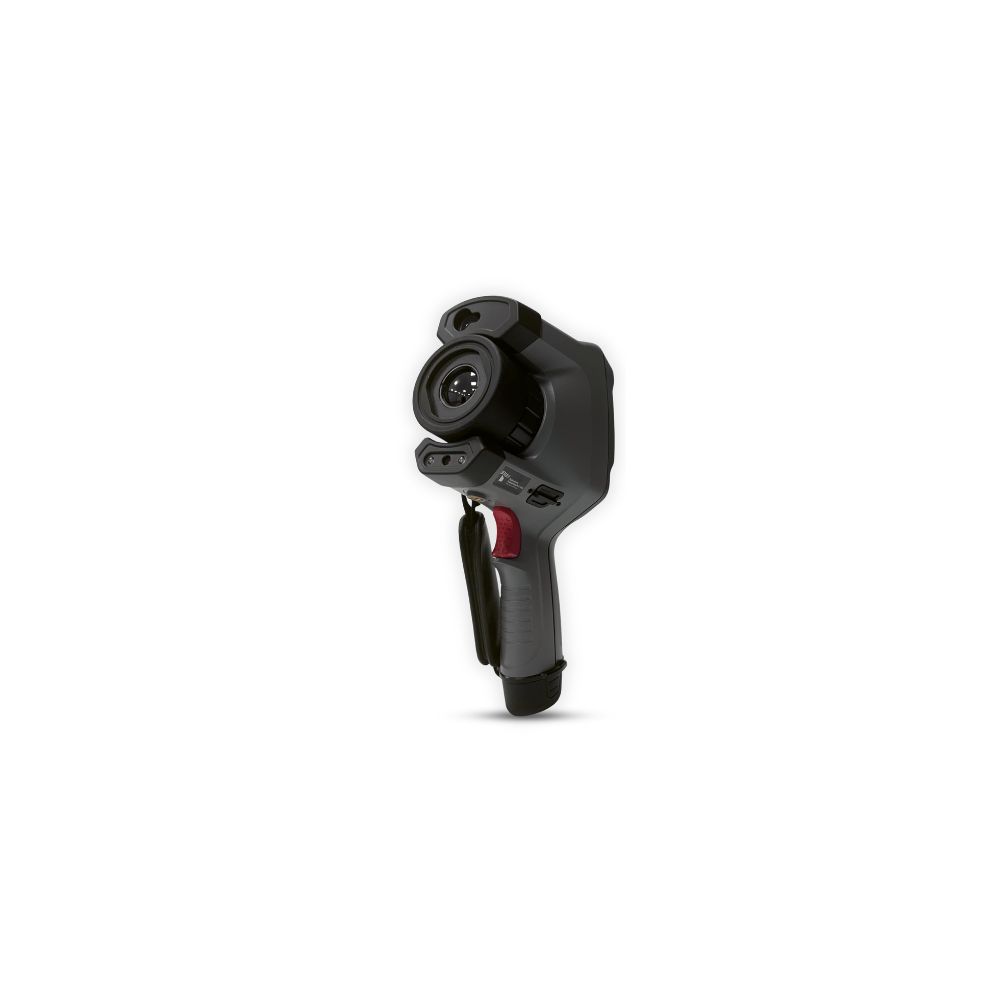

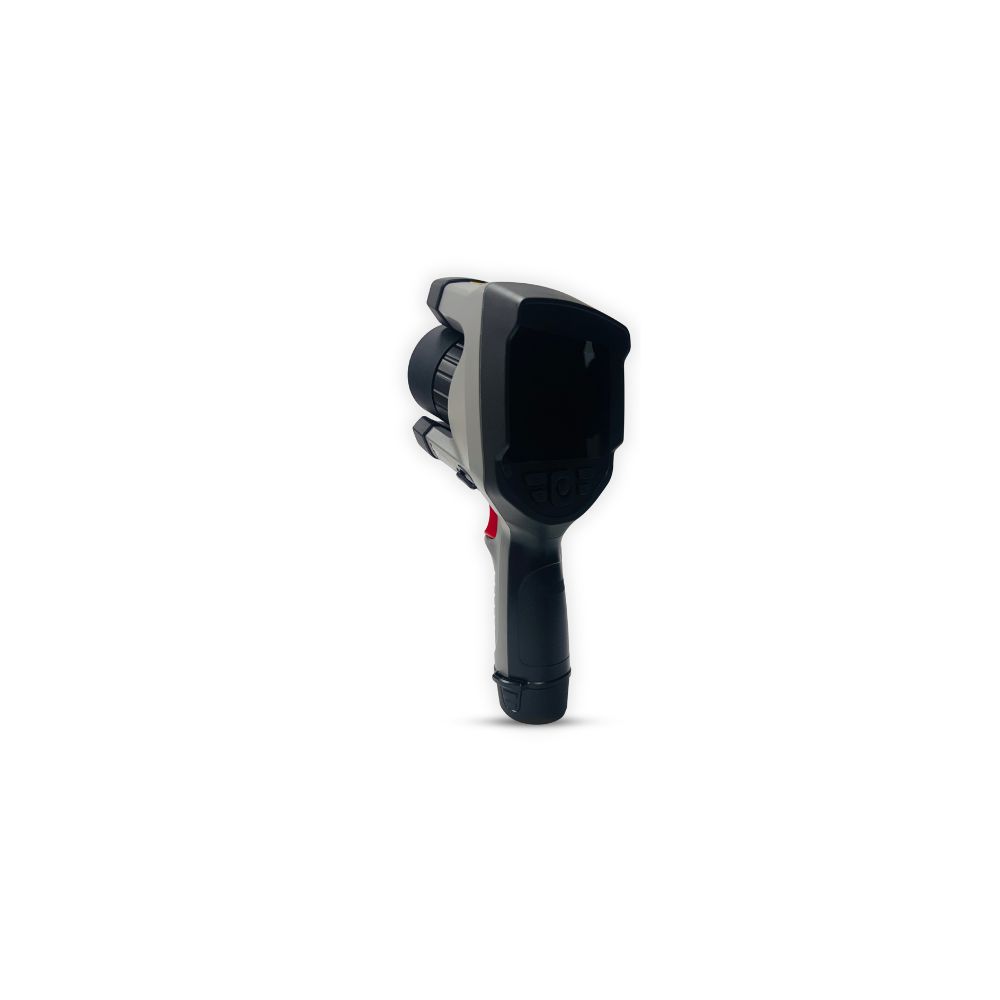

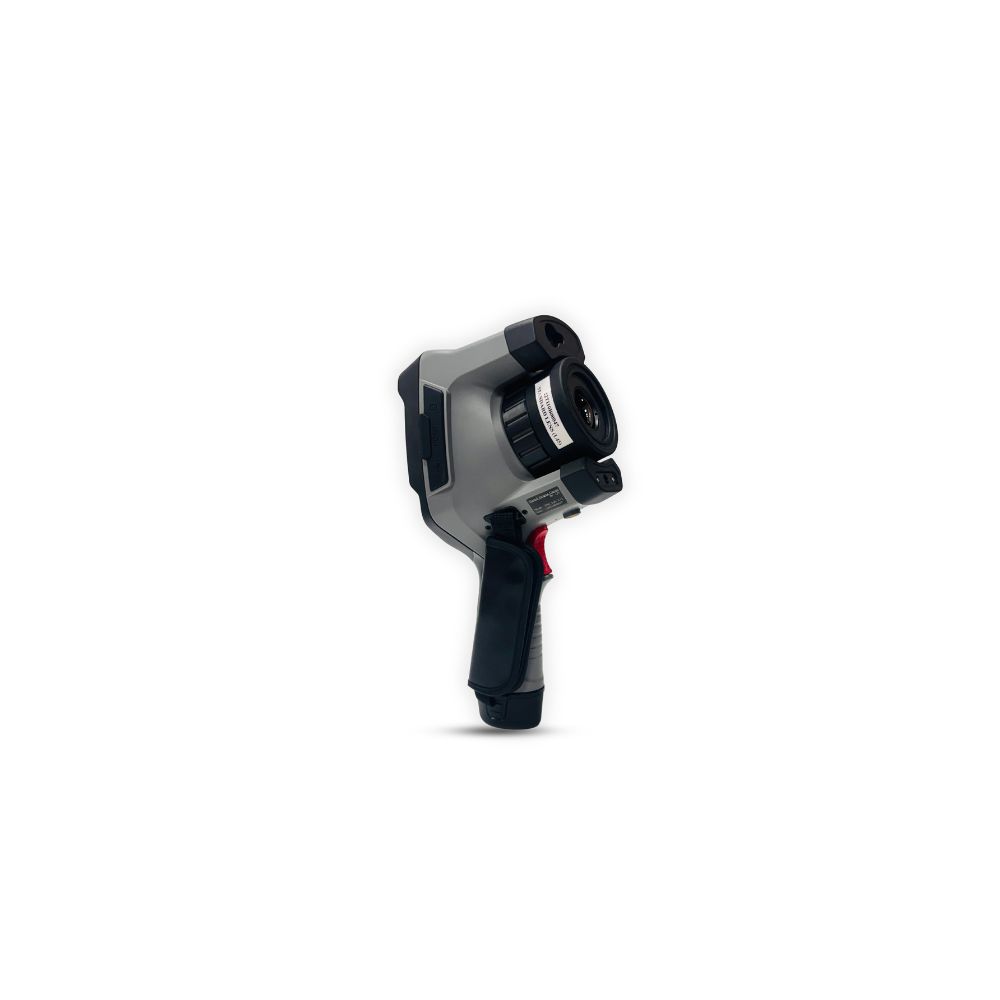

TI9

The TI9 Thermal Imaging Camera is a reliable uncooled thermal imaging device designed for industrial inspection and diagnostics. It features an IR resolution of 384 × 288 pixels with super resolution up to 768 × 576, a 4-inch color touch screen, and advanced IR and visible image fusion technology.

The camera includes a 5-megapixel digital camera with dual LED fill light, thermal and visual image recording, sound and light alarms, and text and voice annotation. With built-in Wi-Fi, Bluetooth, GPS, and laser distance measurement, the TI9 is suitable for power plants, railways, petrochemical industries, metallurgy, steel plants, cement plants, and industrial maintenance applications.

After-sales service support through dedicated team.
Pre-dispatch quality inspection before delivery.
Training support for operation and basic handling.
Training support for operation and basic handling.

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

High IR detector resolution with super-resolution mode
4-inch bright touch screen with graphical interface operation
5-megapixel digital camera with dual LED fill light
Infrared, visible, picture-in-picture, and dual-band fusion imaging modes
Laser ranging with automatic focus according to target distance
Bluetooth headset support for audio transmission
Interchangeable and auto-detectable lenses
Real-time image transmission via Wi-Fi / mobile app
Audio and video recording capability

Industrial equipment inspection and preventive maintenance.
Power plant transformer and switchyard thermal monitoring.
Substation and transmission line hotspot detection.
Petrochemical pipeline and process equipment monitoring.
Railway traction and electrical system inspection.

Detector Type: Uncooled FPA Microbolometer
IR Resolution: 384 × 288, Super Resolution 768 × 576, Detector Pitch 17 µm
Thermal Sensitivity (NETD): ≤ 40 mK
Standard Lens : Field of View 25° × 19°, IFOV 1.12 mrad, Focal Length 15 mm, Minimum Focus Distance 0.1 m
Wide Angle Lens (Optional) : 0.5x wide angle lens, 45°x33°, 2.24 mrad, 7.5 mm, 0.08 mtrs
Telephoto Lens (Optional) : 2x telephoto lens 12°x9°, 0.56 mrad, 30 mm, 0.3 mtrs
Ultra Telephoto Lens (Optional) : 3x ultra telephoto lens, 6.9°x5.2°, 0.37 mrad, 45 mm, 0.8 mtrs
Imaging Performance: Frame Rate 50 Hz, Spectral Range 8 µm ~ 14 µm +/-0.5 µm, Digital Zoom 1–10×
Display: 4-inch TFT color touch screen
Temperature Range: -20°C to 650°C (expendable to 1200°C)
Accuracy: ±2°C or ±2%
Storage: 16 GB TF card
Protection: IP54
Weight: ≤ 1.1 kg
