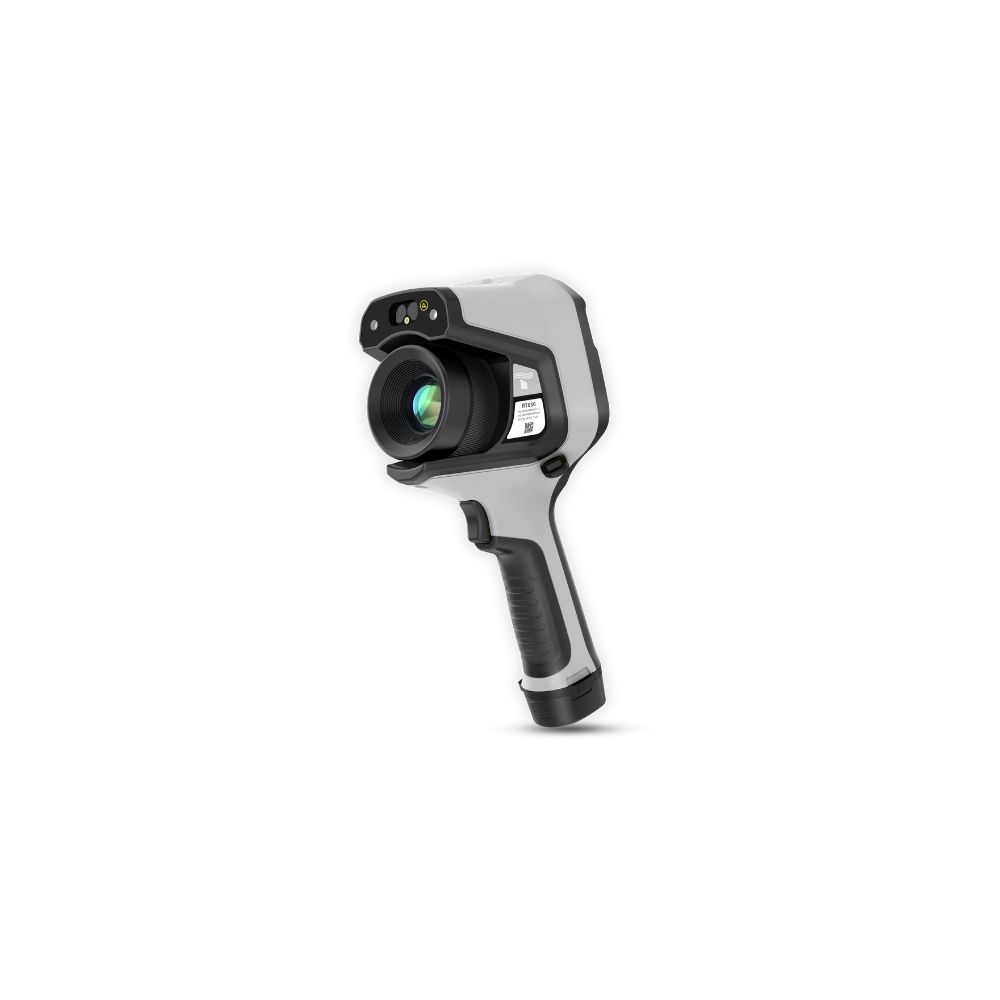

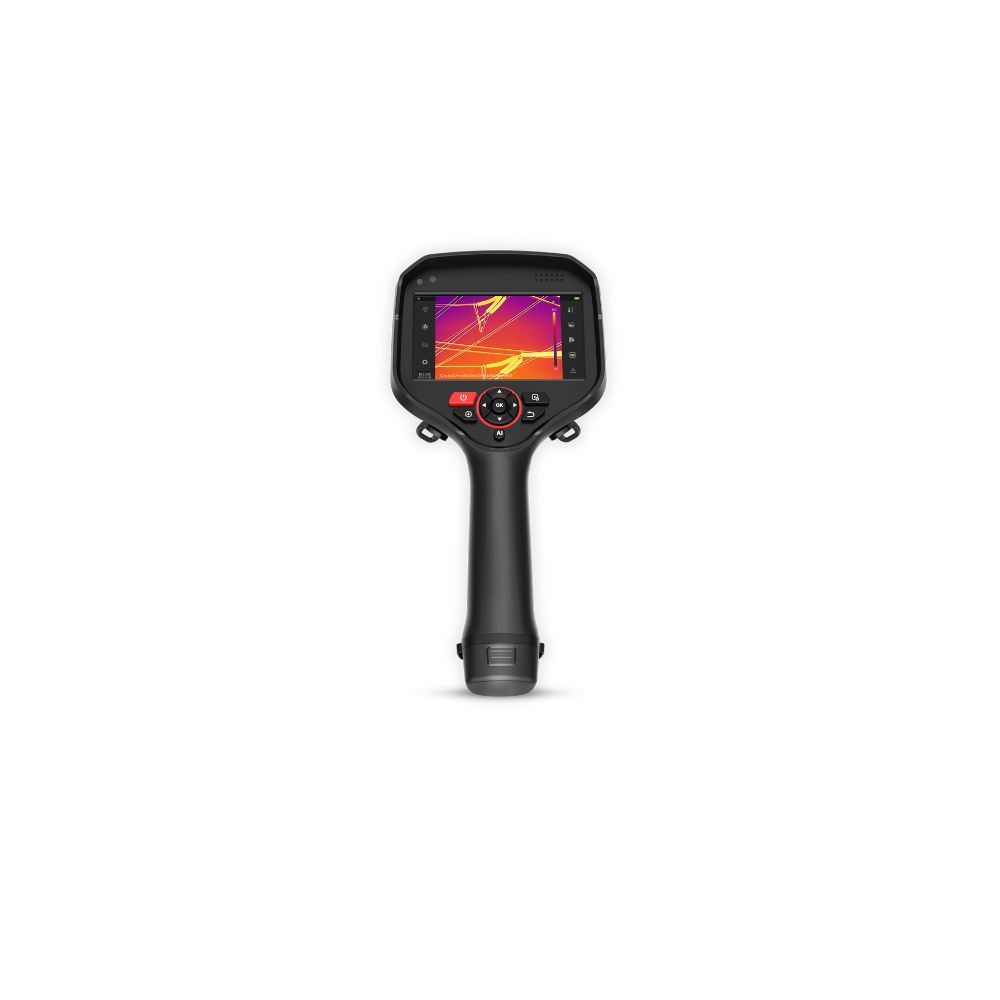

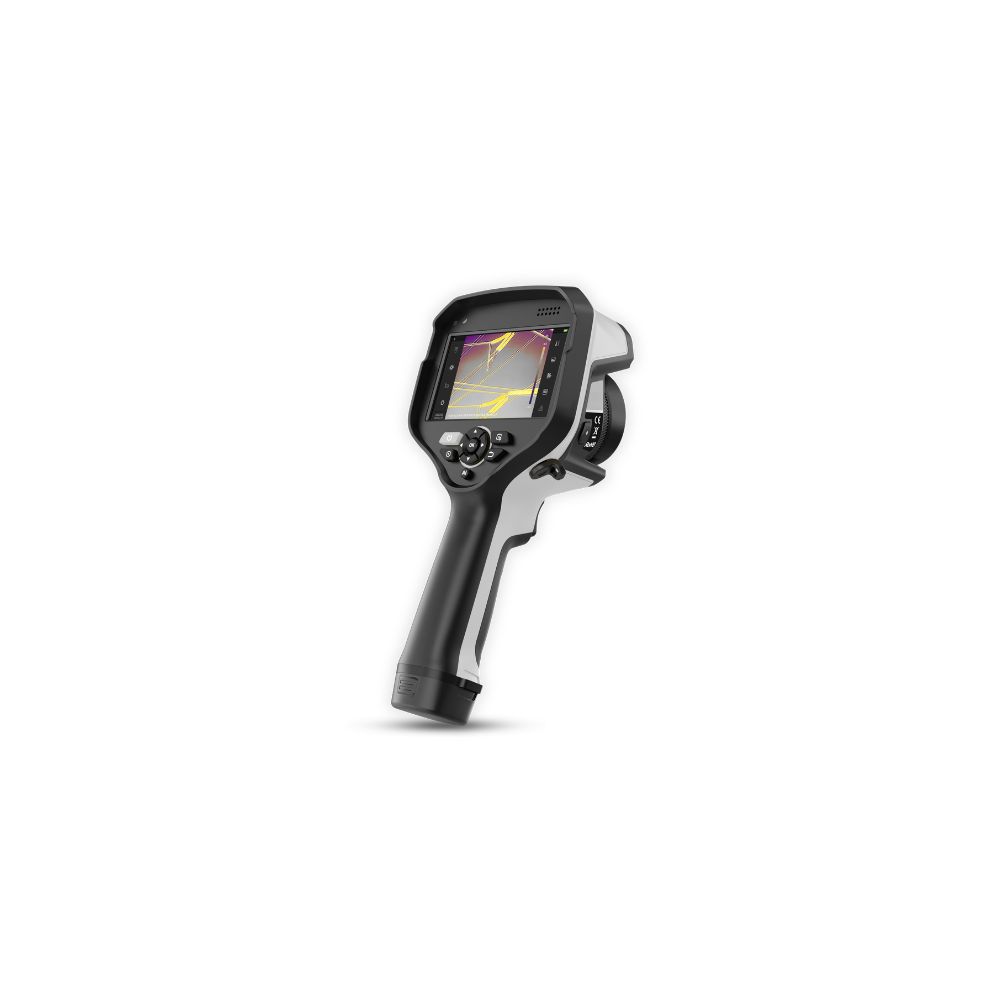

Thermal Imaging Camera

TI348R

TI348R is a time proven series of Uncooled Thermal Imaging Cameras, which feature an IR resolution of up of 640×512 pixels, super resolution up of 1280×1024, 5 inch Color touch screen LED, IR & Visible Image fusion, 13 megapixel CCD camera, high brightness LED light, JPEG Visual Image, Thermal Images (with radiometric data) and RTSP H.264 Video recording & output, Sound & Light alarm, Text and Voice annotation, Network Interface, built in Laser locator and laser distance meter, Bluetooth, Wi-Fi, etc. These models are suitable for a wide range of applications, such as Industrial inspection and testing, Power plant, Railway, Petrochemical, Metallurgy Application, Steel, Cement etc

60+ years of industrial instrumentation experience.
Application-focused technical consultation before supply.
Optional NABL calibration support available.
Dedicated after-sales technical support team.

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

High IR detector resolution, super-resolution mode available.
5-inch OLED touch screen, graphical interface operation.
Extra sharp digital camera of 13 Megapixels, dual LED fill light.
With infrared, visible light, picture-in-picture, and dual-band image fusion modes.
Laser ranging can automatically focus according to the target distance.
Adapted to Bluetooth headset to transmit audio.
Interchangeable and auto-detectable lenses.
Audio/video
Real-time image transmission via wifi / APP

Cement plant kiln, clinker cooler and gearbox monitoring.
Railway traction and overhead line inspection.
High-temperature process monitoring up to 1500°C (optional).
Renewable energy inverter and solar farm inspection.
Electrical panel, MCC and control cabinet thermal scanning.

Model: TI348R
Detector: 12 μm Uncooled Infrared Detector, IR Resolution 640 × 512, Super Resolution 1280 × 1024
Thermal Sensitivity (NETD): ≤35 mK (25°C, F1.0)
Lens Options: 1X - Standard Lens, 0.5X - Wide Angle Lens (Optional), 2X - Telephoto Lens (Optional), 3X - Ultra Telephoto Lens (Optional)
Lens / Optics (Standard): Field of View 25° × 20°, IFOV 0.68 mrad, Focal Length 17.7 mm, Minimum Focus Distance 0.3 m
Imaging Performance: Frame Rate 30 Hz, Manual & Automatic Focus, Spectral Range 7.5 – 14 µm, Automatic / Manual Image Adjustment, Digital Zoom 1–10X
Visual Camera: Built-in 13 MP Industrial Grade Digital Camera with dual LED
Display: 5-inch OLED touch screen, 1280 × 720 resolution
Image Modes: Thermal, Visible Image, Picture-in-Picture, Dual Spectrum Fusion
Temperature Range: -20°C to 150°C and 100°C to 650°C (Optional high temperature range 400°C to 1500°C)
Accuracy: ±2°C or ±2% whichever is greater (@25°C ambient)
Measurement Functions: Up to 25 movable points, lines, frames, circles and polygons, up to 5 preset modes
Color Palette: 19 palettes
Additional Measurement Tools: Picture-in-Picture, Laser Rangefinding
Setup Functions: Date / time, temperature units (°C / °F), language
Emissivity Correction: Adjustable 0.01 – 1.0
Connectivity: WiFi real-time image transmission, GPS support, electronic compass
Storage: Micro SD card slot with 64 GB SD card
File Formats: Image JPEG with measurement data, Full radiometric thermal video (.IRV), Standard MP4 video
Software & Annotation: Analysis software provided, Voice annotation, Text annotation
Interfaces: Mini USB Type-C data interface, Type-C to HDMI video interface, Built-in microphone, Bluetooth audio input/output, Flashlight
Power: 10,000 mAh rechargeable Li-ion battery, operating time >6 hours, charging via USB Type-C or desktop charger
Environment: Operating temperature -20°C to 55°C, storage temperature -40°C to 70°C, relative humidity <95% RH
Protection: IP54 encapsulation
Physical: Weight ≤1.3 kg (with battery), dimensions 144 × 129 × 307 mm, tripod interface UNC 1/4”-20
Interfaces: WiFi, Bluetooth, Type-C to HDMI
Safety & Protection: Shock 25 g (IEC 60068-2-27), Vibration 2 g (IEC 60068-2-6), EMI/EMC IEC 61000-4-2 & IEC 61000-4-8, Drop resistance 2 m (IEC 60068-2-32), Safety IEC 61010-1, CE compliant
Standard Accessories: Thermal camera, Lens with lens hood, Lithium-ion battery ×2, Charging stand, Charger, Charging cable, PC analysis software, Bluetooth headset, 64 GB SD card, Type-C cable, Data download card, NABL calibration certificate, Hand strap with buckle, Safety box, Lens cap
Optional Lenses (Interchangeable & Auto-detectable):
0.5× Wide Angle Lens – FOV 45° × 36°, IFOV 1.26 mrad, Focal Length 9.5 mm, Min Focus Distance 0.15 m
2× Telephoto Lens – FOV 14° × 11.2°, IFOV 0.38 mrad, Focal Length 31.5 mm, Min Focus Distance 3 m
3× Ultra Telephoto Lens – FOV 7° × 5.6°, IFOV 0.2 mrad, Focal Length 60.9 mm, Min Focus Distance 4 m
Optional Accessories: High temperature option up to 1500°C, 2 TB Micro SD card, Spare rechargeable battery, Spare battery charger
